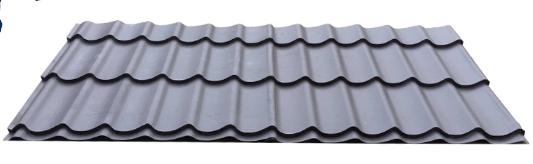

High speed Anti-aging step tile rolling forming machine with stacker

High speed Anti-aging step tile rolling forming machine with stacker is used to make the step tile in batch fully automatically. And this step tile is quite popular in European. Compared with the traditional glazed tile making machine, this one the speed is faster and it is more stronger than the normal roofing sheet machine. Our roofing sheet roll forming machine have muti-function,not only can produce normal PPGI and color steel material,also can use for composite material.

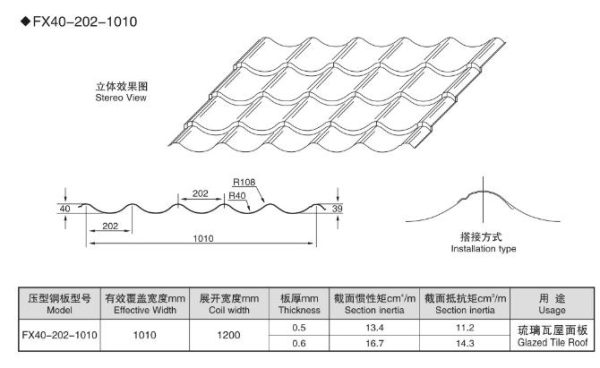

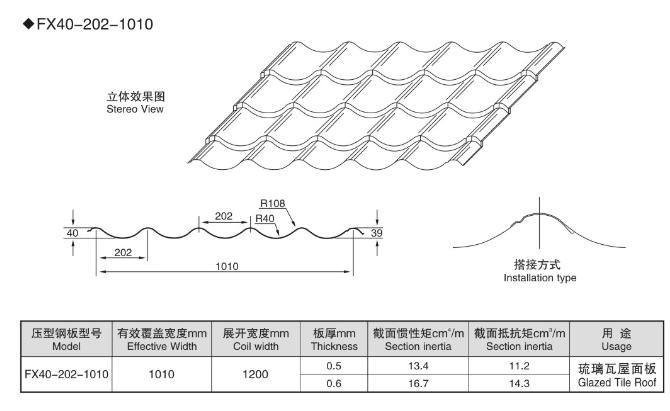

Take the High speed Anti-aging step tile drawing profile for your reference:

1

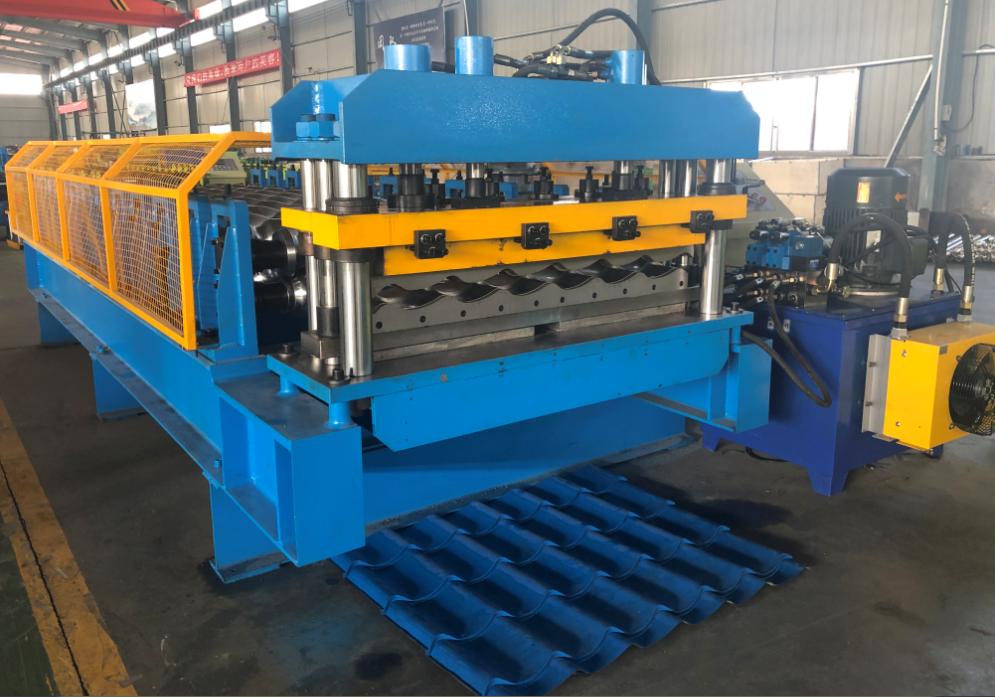

Based on the High speed Anti-aging step tile , we design the machine like following:

3

High speed Anti-aging step tile rolling forming machine parameters for your reference:

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- receiving table

Part detailsItem NameSpecification
Manual uncoilercarrying capacity6 tons
StypeManual
Raw coilCoil materialsteel
Coil thickness0.3-0.8 mm
 Machine bodyRoller station17 station
Roller materialGcr15 quencing at 58 degree
Shaft materialGcr15 quencing at 58 degree
Shaft diameter90 mm
Machine weightAbout 6.5 tons
Machine size7.5*1.5*1.5 m
Speed5-8 m/min
CutterOperateHydraulic cutting
Blade materialCr12
PowerOperateChain transmission
Chain size1 inch chain
Control systemPLC brandTaiwan delta
Motor power7.5 kw
Hydraulic pump power4 kw
Voltage380V 50Hz 3phase
Machine colorAs ur need
Machine languageChinese and English

Why this High speed Anti-aging step tile rolling forming machine can reach high speed?

  1. We use the molding frame of 45mm, to make sure when machine working high speed, it can also working long time.
  2. The transmission it uses gearbox to make sure the power given evenly and smoothly.
  3. The hydraulic power is big enough to make do the fast stepping and shearing.
  4. As to the machine it has electricity accumulator to make sure the non-stop working.
  5. The shearing and stepping, we use the whole molding design, by this way, the stepp and shearing can do at the same time to reduce the working time.

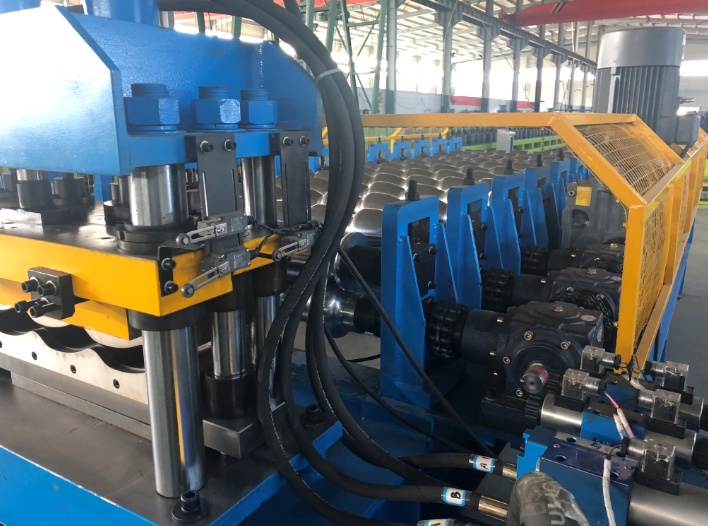

Here are more pictures for your reference:

4

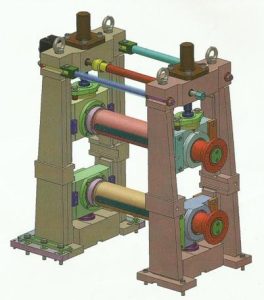

HIGH DUTY STRUCTURE

The sturcture we use for this machine has the higher duty mechanical behavior,

Molding frame of thickness 45mm

Europe strandard;

ROLLERS

The rollers processing by twice CNC machining and hard chromed, HRC 58-62;

Shaft diameter is 76mm for standard;

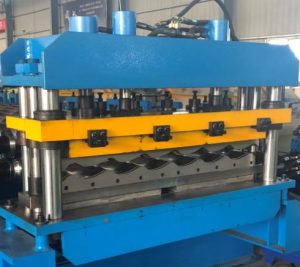

CUTTING SYSTEM

Cutting blade material CR12 MOV;

Whole molding stepping and shearing system

4 pillar pole supporting system

Big hydraulic jack and big valves

FAMOUS BRAND PLC

1. PLC controller  -- Siemens

2. Transducer -- Yaskawa

3. Encoder -- KOYO

4. Other electronic component- Schneider

HYDRAULIC DECOILER AND COIL CART

(optional)

5 tons hydraulic decoiler with coil cart;

Automatic loading & unloading ;

Expanding tight by hydraulic station;

AUTO STACKER

(optional)

4/6/8/10/12 meters long for choice;

Single layer and double layer;

Max stacking weight is about 4 tons;

For this High speed Anti-aging step tile rolling forming machine, if you want to know more information, please contact me at any time.
